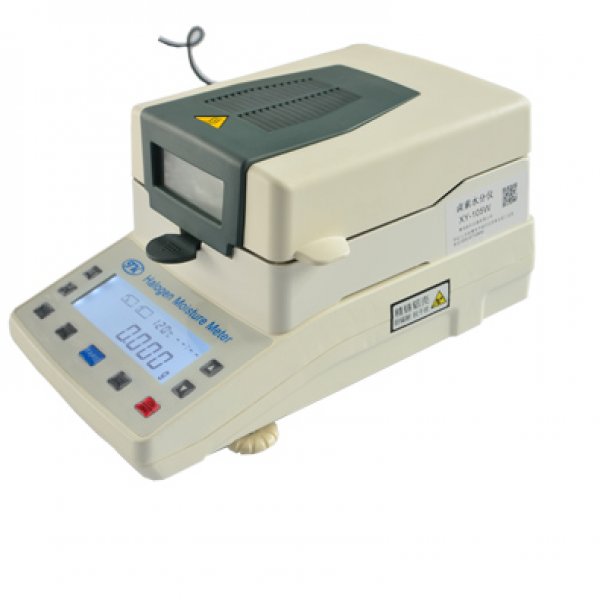

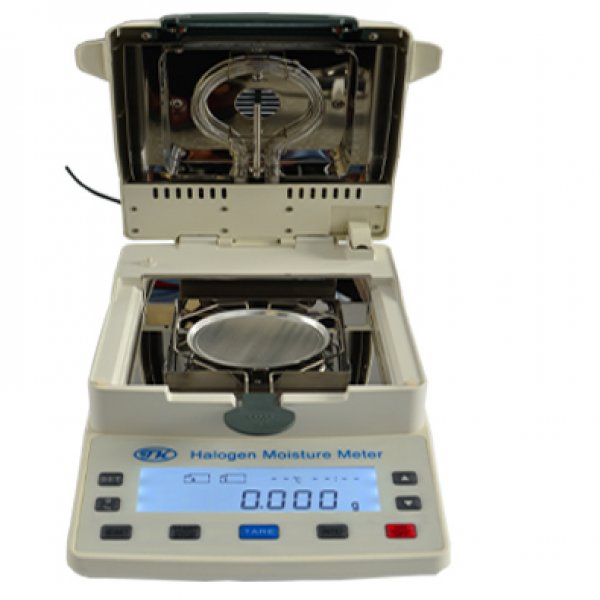

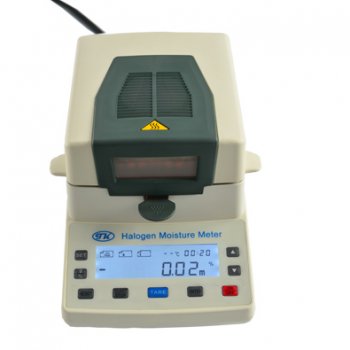

XY105W Halogen Moisture Meter

Halogen Moisture Goniophotometer is a new type of high-speed infrared moisture test instrument and can be used to measure the moisture of any material. (Except the substances which generate dangerous chemical reaction through heating) The instrument is designed in accordance with the thermogravimetric principle. While the instrument measures the weight of samples, infrared heating units and water evaporation channels dries samples rapidly too. In the drying process, instrument measures continually and displays immediately the lost moisture (%) of the samples in the process. When the drying is completed, the finally measured moisture is locked. Press the display button, data such as the moisture value, the starting value of the weight, the initial value and measuring time can be observed. Compared with the traditional oven heating method, infrared heating can achieve maximum heating power in the shortest possible time because that the samples are dried rapidly in high temperature can greatly accelerate the measurement time. The instrument is applicable to all the fields which need rapid moisture measurement such as medicine, grain, tobacco, chemicals, tea, foods, textiles, agriculture and forestry, etc. This instrument is able to communicate with computer. Measuring data of moisture can be printed out though the computer or directly by the printer matched.

LAST NEXT

PRODUCT DETILS

Mode	XY-105W	XY-102W	XY-100W
Specification	110g/5mg	110g/2mg	110g/1mg
Readability	5mg	2mg	1mg
Tray size	Φ 90
Heating mode	Halogen Lamp
Display	LCD
Temperature Setting	40℃~199℃
Time Setting	1~99 minutes
Measuring range	0%~100%

History store	15 set

Standard Packing List

Standard	Quantity	Note
Moisture Analyzer Mainframe	1 set
Wind Cover	1 piece
The sample pan holder	1 piece
Tray handle	1 piece
Power cord	1 piece
Aluminum sample tray	1 set	45pcs of aluminum pan
100g standard weight	1 piece
Product Manual	1 piece
Product certification	1 piece
Warranty card	1 piece
